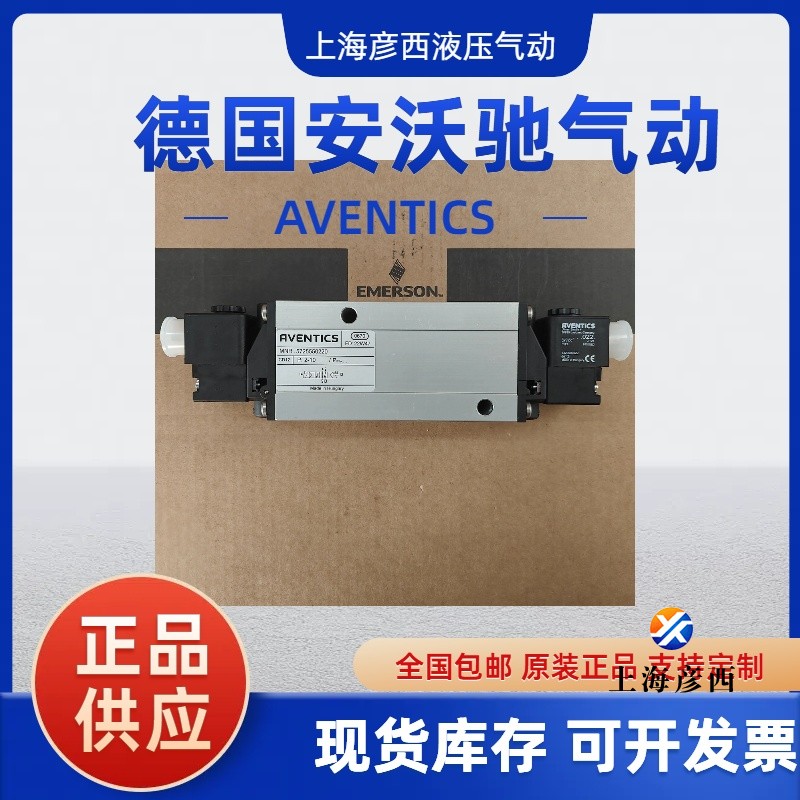

AVENTICS 二位五通换向阀5725550220  CD12-5/2XX-DO-024DC-I-G012-G012-EN175301

规格

操作电子

额定流量Qn4100 l/min

换向原理5/2

压缩空气 接口 出口G 1/2

最小运行压力2 bar

最大运行压力10 bar

工作电压DC24 V

电压偏差 DC-10% / +10%

手动控制装置锁定式, 按钮式

电气连接 类型多芯插头

电气连接 尺寸EN 175301-803, A型

电气连接 极数3-針

操作元件双线圈

密封原理软密封

先导内部

预控阀的宽度30 mm

阀门结构形式滑阀，正重叠

连接类型管式连接

抗温性-25 °C 耐低温

控制压力最小2 bar

最大控制压力10 bar

最低环境温度-25 °C

最高环境温度50 °C

介质温度最小值-25 °C

介质温度最大值50 °C

5725400220 CD12-5/2XX-AR-024DC-I-M022-M022-EN175301

5725405202 CD12-5/2XX-AR-NONE-I-M022-M022

5725405270 CD12-5/2XX-AR-110AC-I-M022-M022-EN175301

5725405280 CD12-5/2XX-AR-230AC-I-M022-M022-EN175301

5725450220 CD12-5/2XX-AR-024DC-I-G012-G012-EN175301

5725455202 CD12-5/2XX-AR-NONE-I-G012-G012

5725455270 CD12-5/2XX-AR-110AC-I-G012-G012-EN175301

5725455280 CD12-5/2XX-AR-230AC-I-G012-G012-EN175301

5725455302 CD12-5/2XX-AR-NONE-I-G012-G012

5725470002 SPARE PART KIT CD12

5725470220 CD12-5/2XX-SR-024DC-I-G012-G012-EN175301

5725470920 CD12-5/2SR-G012-024DC-MODI

5725475202 CD12-5/2XX-SR-NONE-I-G012-G012

5725475270 CD12-5/2XX-SR-110AC-I-G012-G012-EN175301

5725475280 CD12-5/2XX-SR-230AC-I-G012-G012-EN175301

5725480220 CD12-5/2XX-SR-024DC-E-G012-G012-EN175301

5725485202 CD12-5/2XX-SR-NONE-E-G012-G012

5725485270 CD12-5/2XX-SR-110AC-E-G012-G012-EN175301

5725485280 CD12-5/2XX-SR-230AC-E-G012-G012-EN175301

5725500220 CD12-5/2XX-DO-024DC-I-M022-M022-EN175301

5725505202 CD12-5/2XX-DO-NONE-I-M022-M022

5725505270 CD12-5/2XX-DO-110AC-I-M022-M022-EN175301

5725505280 CD12-5/2XX-DO-230AC-I-M022-M022-EN175301

5725550220 CD12-5/2XX-DO-024DC-I-G012-G012-EN175301

5725555202 CD12-5/2XX-DO-NONE-I-G012-G012

5725555270 CD12-5/2XX-DO-110AC-I-G012-G012-EN175301

5725555280 CD12-5/2XX-DO-230AC-I-G012-G012-EN175301

5725560220 CD12-5/2XX-DO-024DC-E-G012-G012-EN175301

5725565202 CD12-5/2XX-DO-NONE-E-G012-G012

5725565270 CD12-5/2XX-DO-110AC-E-G012-G012-EN175301

5725565280 CD12-5/2XX-DO-230AC-E-G012-G012-EN175301

5725650220 CD12-5/3CC-SR-024DC-I-G012-G012-EN175301

5725650920 CD12-5/3CC-SR-024DC-I-G012-G012-EN175301

5725655202 CD12-5/3CC-SR-NONE-I-G012-G012

5725655270 CD12-5/3CC-SR-110AC-I-G012-G012-EN175301

5725655280 CD12-5/3CC-SR-230AC-I-G012-G012-EN175301

5725655980 CD12-5/3CC-SR-230AC-I-G012-G012-EN175301

5725680220 CD12-5/3EC-DO-024DC-E-G012-G012-EN175301

5725685202 CD12-5/3EC-DO-NONE-E-G012-G012

5725685270 CD12-5/3EC-DO-110AC-E-G012-G012-EN175301

5725685280 CD12-5/3EC-DO-230AC-E-G012-G012-EN175301

R412000127 CD12-5/3CC-DO-024DC-E-G012-G012-EN175301

R412000148 CD12-5/3CC-DO-110AC-E-G012-G012-EN175301

R412000149 CD12-5/3CC-DO-230AC-E-G012-G012-EN175301

R412000151 CD12-5/3CC-DO-NONE-E-G012-G012

R412000153 CD12-5/3PC-DO-024DC-E-G012-G012-EN175301

R412000154 CD12-5/3PC-DO-110AC-E-G012-G012-EN175301

R412000157 CD12-5/3PC-DO-230AC-E-G012-G012-EN175301

R412000160 CD12-5/3PC-DO-NONE-E-G012-G012

R412000219 CD12-5/3PC-DO-024DC-I-G012-G012-EN175301

R412000220 CD12-5/3PC-DO-110AC-I-G012-G012-EN175301

R412000221 CD12-5/3PC-DO-230AC-I-G012-G012-EN175301

R412000222 CD12-5/3PC-DO-NONE-I-G012-G012

R412000224 CD12-5/3EC-DO-024DC-I-G012-G012-EN175301

R412000225 CD12-5/3EC-DO-110AC-I-G012-G012-EN175301

R412000230 CD12-5/3EC-DO-230AC-I-G012-G012-EN175301

R412000237 CD12-5/3EC-DO-NONE-I-G012-G012

R412000242 CD12-5/2XX-SR-NONE-E-M022-M022

R412000243 CD12-5/2XX-SR-NONE-I-M022-M022

R412000244 CD12-5/2XX-DO-NONE-E-M022-M022

R412008096 CD12-5/2XX-SR-NONE-I-G012-G012

R412008097 CD12-5/2XX-DO-NONE-I-G012-G012

R412008098 CD12-5/3CC-SR-NONE-I-G012-G012

R412013341 CD12-5/2XX-SR-024DC-I-M022-M022-EN175301

R412013342 CD12-5/2XX-SR-230AC-I-M022-M022-EN175301

R412013343 CD12-5/2XX-SR-M022-M022-G018-S

R412013344 CD12-5/2XX-DO-M022-M022-G018-S

R414002380 CD12-5/3PC-SR-G012-G012-G018-S

R414008529 CD12-3/2NC-SR-024DC-I-G012-G012-MODI
